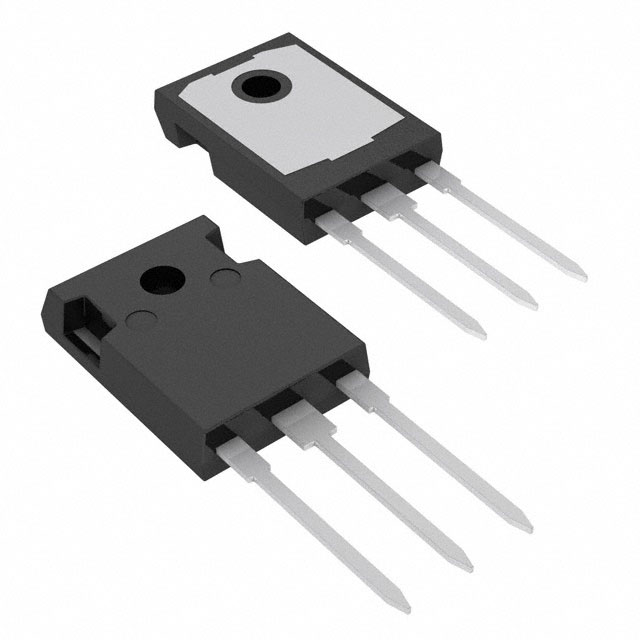

Understanding the BSDW20S65C6 Diode Specifications
The BSDW20S65C6 diode represents an innovative advancement in semiconductor technology, utilizing Silicon Carbide (SiC) to deliver exceptional performance and reliability. One of the crucial specifications of this diode is its voltage rating, which stands at an impressive 650V. This high voltage capability makes it suitable for a wide range of applications, including power supplies and industrial machinery, where high efficiency is paramount.
In terms of current handling, the BSDW20S65C6 can manage up to 20A, allowing it to support substantial load requirements while ensuring minimal performance degradation over time. This characteristic is particularly important for applications that demand consistent and reliable energy management under varying load conditions. Moreover, the diode boasts a low forward voltage drop, typically around 1.6V, which significantly reduces energy losses during operation. A lower forward voltage drop enhances overall system efficiency, highlighting the advantage of using SiC technology, known for its superior electrical attributes compared to traditional silicon-based diodes.
Thermal performance is another key feature of the BSDW20S65C6 diode. It is engineered to operate effectively at elevated temperatures, with a maximum junction temperature of 175°C. This thermal resilience is vital for applications that involve high ambient temperatures or continuous operation, as it allows the diode to maintain its reliability and operational integrity. When comparing the BSDW20S65C6 diode with competitors in the same category, it becomes evident that its combination of voltage, current capacity, low forward voltage drop, and robust thermal management positions it as a leading choice among SiC Schottky diodes. Such specifications not only enhance circuit performance but also contribute to longer service life and reduced maintenance costs, making the BSDW20S65C6 an attractive option for engineers and designers seeking reliable, high-performance solutions.
Applications and Benefits of the BSDW20S65C6 Diode
The BSDW20S65C6 diode, known for its SiC Schottky design and 650V rating, plays a pivotal role in various applications across different sectors. One of the primary uses of this diode is in power supply systems, where its high efficiency significantly enhances performance. By minimizing conduction losses, the BSDW20S65C6 allows power supplies to operate with improved reliability and efficiency, making it an essential component in modern electronic designs.
In the realm of electric vehicles (EVs), the BSDW20S65C6 diode finds considerable application. With the increasing demand for energy-efficient solutions, integrating this diode into EV powertrains helps reduce the overall energy consumption and enhances battery life. The ability of the diode to handle high voltages while maintaining low reverse recovery characteristics is vital for the performance of electric vehicles, ensuring smooth operation and prolonged battery usage.
Renewable energy systems, particularly solar power applications, also benefit from the integration of the BSDW20S65C6 diode. In photovoltaic systems, this diode serves as a rectifying component, converting direct current (DC) generated by solar cells into alternating current (AC) for home and industrial use. The diode’s low forward voltage drop contributes to greater energy harvesting, ultimately translating to improved efficiency of solar inverters and overall energy conservation.
Furthermore, the BSDW20S65C6 diode offers advantages such as reduced switching losses and improved thermal stability. These characteristics not only enhance the performance of electronic devices but also help in maintaining optimal operational temperatures. As a result, designers can achieve higher reliability in their systems. By incorporating the BSDW20S65C6 into their projects, engineers can achieve enhanced performance and contribute to energy conservation across various electronic applications.
